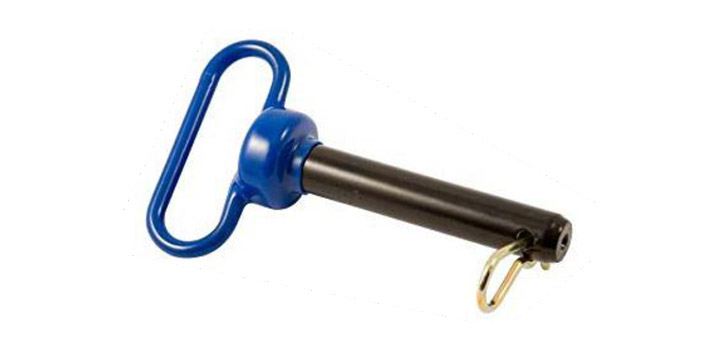

BLUE HANDLE HITCH PIN WITH R CLIP
DESCRIPTION
Heat Treated; GRADE 8 performance hitch pin made from alloy steel is designed for the toughest applications.
Pin has black powder coating with Blue Vinyl coated head and handle.
SPECIFICATION
| Agriparts Part No. | Reference No. | Pin Dia (A) | Usable Length (B) | Overall Length | Width (lbs) |
|---|---|---|---|---|---|
| PAHPB201 | P700811 | 1/2" | 3-5/8” | 6-5/8” | 0.7 |
| PAHPB202 | P700821 | 5/8” | 4” | 7” | 0.9 |
| PAHPB203 | P700822 | 5/8” | 6” | 9” | 1.0 |
| PAHPB204 | P700831 | 3/4" | 4” | 7” | 1.2 |
| PAHPB205 | P700832 | 3/4" | 6-1/2” | 9-1/2” | 1.2 |
| PAHPB206 | P700841 | 7/8” | 4-1/4” | 7-1/4” | 1.4 |
| PAHPB207 | P700842 | 7/8” | 6-1/2” | 9-1/2” | 1.9 |
| PAHPB208 | P700851 | 1” | 4-3/4” | 7-3/4” | 1.9 |
| PAHPB209 | P700852 | 1” | 7-1/2” | 10” | 2.4 |
| PAHPB210 | P700862 | 1-1/8” | 7” | 10” | 3.0 |
| PAHPB211 | P700872 | 1-1/4” | 7” | 10” | 3.0 |
| PAHPB212 | P700882 | 1-1/2” | 8-1/2” | 11-1/2” | 5.8 |
