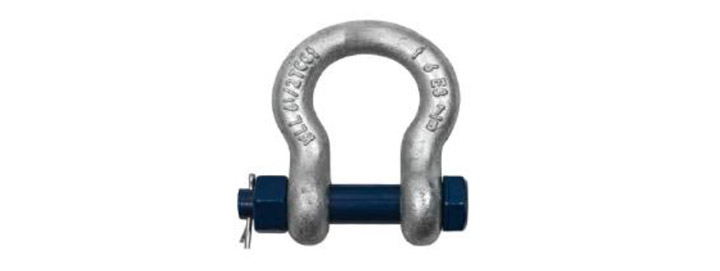

BOLT TYPE ANCHOR SHACKLES
DESCRIPTION
High tensile forged steel.
Oversized pin.
Hot dipped galvanised finish.
SPECIFICATION
| Agriparts Part No. | Reference No. | A (Pin Dia) | B (Clearance) | C | D | S | W.L.L. (Tons) |
|---|---|---|---|---|---|---|---|
| PABTAS001 | 66900 | 5/16” | 1-1/8” | 1/2" | 3/4" | 1/4" | 1/2 |
| PABTAS002 | 66901 | 3/8” | 1-1/4 | ” 1/2" | 7/8” | 5/16” | 3/4 |
| PABTAS003 | 66902 | 7/16” | 1-7/16” | 5/8” | 1” | 3/8” | 1 |
| PABTAS004 | 66903 | 1/2" | 1-11/16” | 3/4" | 1-1/8” | 7/16” | 1-1/2 |
| PABTAS005 | 66904 | 5/8” | 1-7/8” | 3/4" | 1-5/16” | 1/2" | 2 |
| PABTAS006 | 66905 | 3/4" | 2-3/8” | 1-1/16” | 1-5/8” | 5/8” | 3-1/4 |
| PABTAS007 | 66906 | 7/8” | 2-3/4” | 1-1/4” | 2” | 3/4" | 4-3/4 |
| PABTAS008 | 66907 | 1” | 3-5/16” | 1-7/16” | 2-1/4” | 7/8” | 6-1/2 |
| PABTAS009 | 66908 | 1-1/8” | 3-3/4” | 1-11/16” | 2-11/16” | 1” | 8-1/2 |
