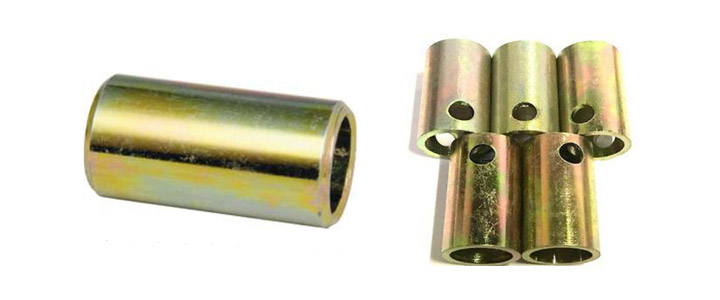

BUSHING
TOP LINK REDUCER BUSHINGS
| Agriparts Part No. | Reference No. | Cat. | Outer Dia (A) | Inner Dia (B) | Length | Weight (lbs) |
|---|---|---|---|---|---|---|
| PATLRB001 | B829 | 0–1 | 3/4" | 5/8” | 1-5/8” | 0.1 |
| PATLRB002 | B831 | 1–2 | 1” | 3/4" | 1-15/16” | 0.2 |
| PATLRB003 | B832 | 1–2 | 1” | 3/4" | 1-5/8” | 0.2 |
| PATLRB004 | B833 | 2–3 | 1-1/4” | 1” | 1-15/16” | 0.2 |
LIFT ARM REDUCER BUSHINGS
| Agriparts Part No. | Reference No. | Cat. | Outer Dia (A) | Inner Dia (B) | Length | Weight (lbs) |
|---|---|---|---|---|---|---|
| PALARB001 | B828 | 0–1 | 7/8” | 5/8” | 1-3/8” | 0.1 |
| PALARB002 | B821 | 1–2 | 1-1/8” | 7/8” | 1-3/4” | 0.2 |
| PALARB003 | B8221 | 1–2 | 1-1/8” | 7/8” | 1-3/8” | 0.2 |
| PALARB004 | B832 | 2–3 | 1-7/16” | 1-1/8” | 1-3/4” | 0.3 |
| PALARB005 | B8320 | 2–3 | 1-7/16” | 1-1/8” | 3-1/4” | 0.5 |
| PALARB006 | B8312 | 2–3 | 1-7/16” | 1-1/8” | 2-1/2” | 0.4 |
| PALARB007 | B8319 | 2–3 | 1-7/16” | 1-1/8” | 2-3/4” | 0.5 |
