CLEVIS HITCH PINS
DESCRIPTION

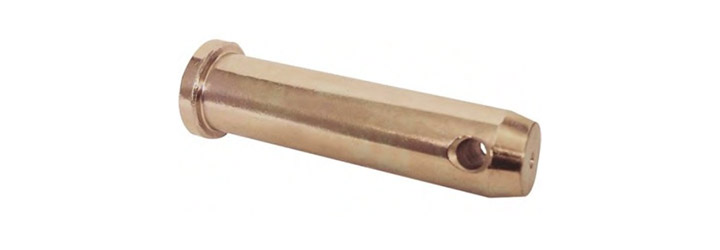

An economy hitch pin (clevis pin) for numerous applications, yellow zinc dichromate plated.
SPECIFICATION
| Agriparts Part No. | Reference No. | Pin Dia (A) | Usable Length (B) | Total Length | Weight (lbs) |
|---|---|---|---|---|---|
| PACLPP001 | P7100 | 1/2" | 5” | 6-3/8” | 0.4 |
| PACLPP002 | P7101 | 5/8” | 5” | 6-3/8” | 0.6 |
| PACLPP003 | P7102 | 3/4” | 5” | 6-3/8” | 0.8 |
| PACLPP004 | P7103 | 7/8” | 5” | 6-3/8” | 1.0 |
| PACLPP005 | P7104 | 1” | 5” | 6-3/8” | 1.4 |
| PACLPP006 | P7105 | 1-1/8” | 5” | 6-3/8” | 1.7 |
