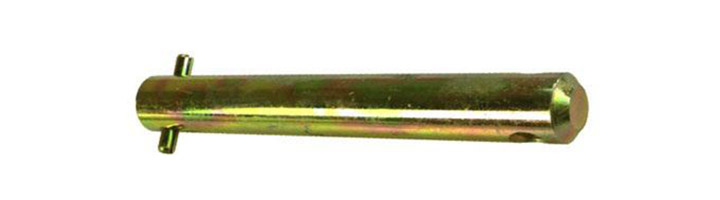

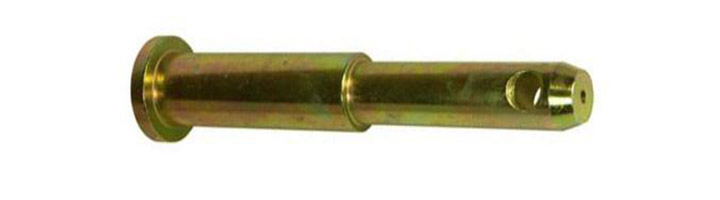

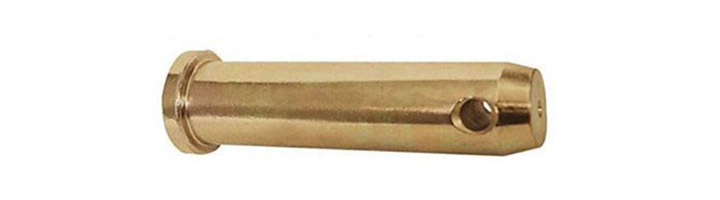

CLEVIS TYPE DRAW PINS
SPECIFICATION
| Agriparts Part No. | Reference No. | Cat. | Discription | Pin Dia. | Usable Length | Overall Length | Weight (lbs) |
|---|---|---|---|---|---|---|---|
| PACTDP001 | P7234 | 1 | Roll Pin | 7/8” | 4-1/2” | 6” | 0.9 |
| PACTDP002 | P7235 | 2 | Roll Pin | 1-1/8” | 3-5/16” | 4-3/4” | 1.2 |
| PACTDP003 | P7236 | 2 | Roll Pin | 1-1/8” | 4-3/4” | 6-1/2” | 1.7 |
| PACTDP004 | P7237 | 2 | Roll Pin | 1-1/8” | 5-3/8” | 7” | 1.9 |
| PACTDP005 | P7238 | 2 | Roll Pin | 1-1/8” | 7-3/8” | 9” | 2.4 |
| PACTDP006 | P7239 | 2 | Roll Pin | 1-1/8” | 9” | 10-3/4” | 2.9 |
| PACTDP007 | P7230 | 3 | Head | 1-7/16” | 4-11/16” | 6” | 2.8 |
| PACTDP007 | P7710 | 3 | Roll Pin | 1-7/16” | 3-3/8” | 5-3/8” | 2.3 |
| PACTDP007 | P7231 | 3 | Roll Pin | 1-7/16” | 6-1/4” | 8-1/2” | 3.8 |
| PACTDP007 | P7250 | 2 & 3 | Head | 1-1/8 & 1-7/16” | 3-5/8” & 4-1/4” | 9-1/4” | s 3.4 |
