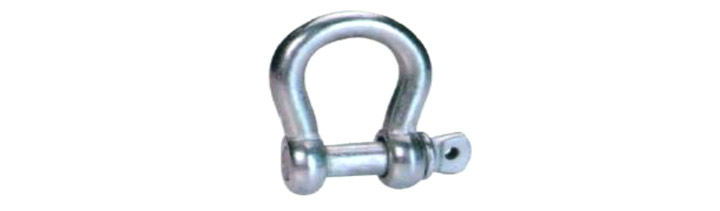

COMMERCIAL GRADE ANCHOR SHACKLES
DESCRIPTION
Oversized Pin C1010 Carbon Steel, sGalvanized for general applications.
SPECIFICATION
| Agriparts Part No. | Reference No. | A | B | D | E | W | W.L.L. (Tons) |
|---|---|---|---|---|---|---|---|
| PACGAS001 | 66010 | 1-1/8” | 1/4" | 5/16” | 3/4" | 1/2" | 600 LB. |
| PACGAS002 | 66011 | 1-7/32” | 5/16” | 3/8” | 13/16” | 17/32” | 1/2 |
| PACGAS003 | 66012 | 1-7/16” | 3/8” | 7/16” | 15/16” | 1 -7/16” | 3/4 |
| PACGAS004 | 66013 | 1-7/8” | 1/2” | 5/8” | 1-5/16” | 13/16” | 1-1/2 |
| PACGAS005 | 66014 | 2-3/8” | 5/8” | 3/4" | 1-11/16” | 1 -1/16” | 2-1/4 |
| PACGAS006 | 66017 | 1-11/16” | 7/16” | 1/2" | 1-5/32” | 11/16” | 1-1/4 |
