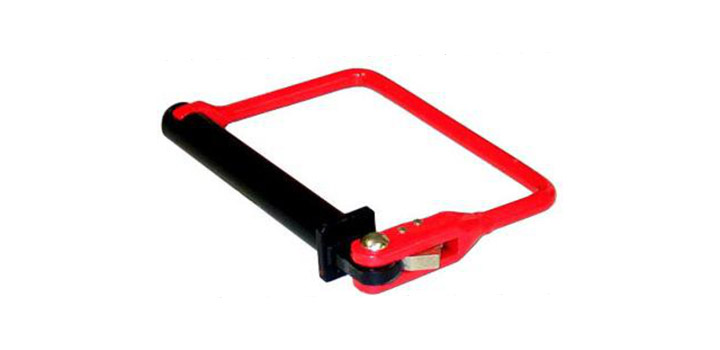

DOUBLE LOCK HITCH PIN
DESCRIPTION
Grade 5 performance hitch pins are designed with a quick release handle to allow easy removal with double lock mechanism ensuring the pin with remain in place.
The pin and handle are powder coated with zinc plated locks.
SPECIFICATION
| Agriparts Part No. | Reference No. | Pin Dia (A) | Usable Length (B) | Width (lbs) |
|---|---|---|---|---|
| PADLHP001 | P700421 | 5/8” | 4-1/2” | 2.0 |
| PADLHP002 | P700431 | 3/4" | 4-1/2” | 2.3 |
| PADLHP003 | P700432 | 3/4" | 6” | 2.6 |
| PADLHP004 | P700441 | 7/8” | 4-1/2” | 2.6 |
| PADLHP005 | P700442 | 7/8” | 6” | 2.9 |
| PADLHP006 | P700452 | 1” | 6” | 3.3 |
| PADLHP007 | P700462 | 1-1/8” | 7” | 4.1 |
| PADLHP008 | P700472 | 1-1/4” | 7” | 4.6 |
| PADLHP009 | P700492 | 1-1/2” | 8” | 5.7 |
