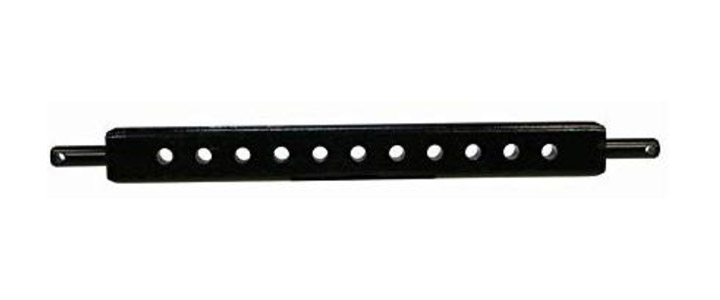

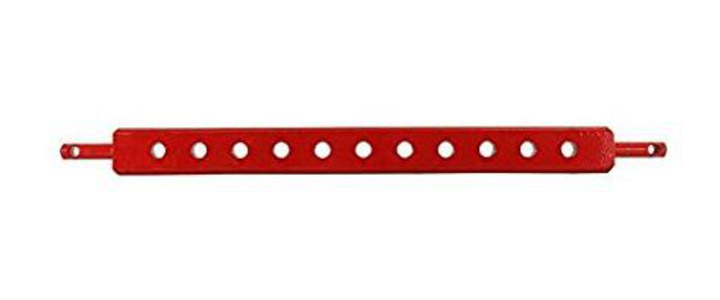

DRAWBARS
SPECIFICATION
| Agriparts Part No. | Reference No. | Cat. | No. of Holes | Lift Arm Spacing (A) | Hole Dia (B) | Pin Dia (C) | Thickness (D) | Width (E) | sColors | Weight (lbs)S |
|---|---|---|---|---|---|---|---|---|---|---|
| PADB001 | DB418 | 0 | 7 | 20” | 5/8” | 5/8” | 5/8” | 2” | Red | 6.8 |
| PADB002 | DB419 | 0/s1 | 7 | 20” | 3/4" | 7/8” | 1” | 2-1/2” | Black | 13.5 |
| PADB003 | DB411 | 1 | 11 | 26” | 3/4" | 7/8” | 1” | 2-1/2” | Blue | 16.4 |
| PADB004 | DB421 | 1 | 11 | 26” | 3/4" | 7/8” | 1-1/4” | 3” | Black | 27 |
| PADB005 | DB422 | 2 | 13 | 32” | 3/4" | 1-1/8” | 1-1/4” | 3” | Blue | 33 |
| PADB006 | DB4212 | 2 | 13 | 32” | 3/4" | 1-1/8” | 1-1/4” | 3” | Black | 33 |
| PADB007 | DB431 | 3 | 5 | 38” | 1-1/4” | 1-1/4” | 1-3/4” | 3-1/2” | Black | 65 |
