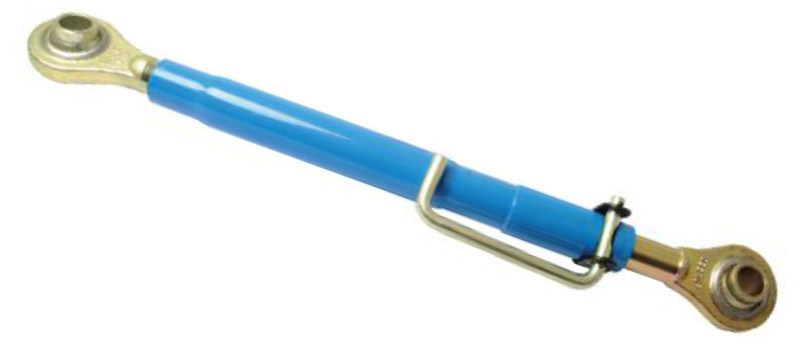

FORD TOP LINKS
DESCRIPTION
Material EN-8, Forged eye bolt, Balls (Material C20, Hardened), Tube Powder Coated, Eye Bolts – Zinc / Golden Plated.
SPECIFICATION
| Agriparts Part No. | Reference No. | Cat | Ball Length | Thread | Pipe Length | Closed Length (Min) | Open Length (Max) | Weight (lbs) |
|---|---|---|---|---|---|---|---|---|
| PAFTL -001 | S.11878 | 1 | 44 | 1 -1/4” | 425 | 622 | 794 | 13.50 |
| PAFTL -002 | S.3630 | 1/2 | 44 | 1 -1/4” | 425 | 622 | 794 | 13.75 |
| PAFTL -003 | S.3631 | 2/2 | 44 | 1 -1/4” | 425 | 622 | 794 | 13.90 |
