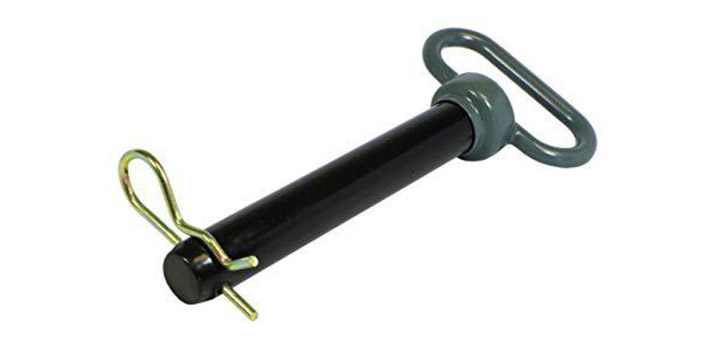

GREY HANDLE HITCH PIN WITH R CLIP
DESCRIPTION
Our premium, Heat Treated, GRADE 8 performance hitch pin made from alloy steel is designed for the toughest applications.
Pin has black powder coating with Gray vinyl coated head and handle.
SPECIFICATION
| Agriparts Part No. | Reference No. | Pin Dia (A) | Usable Length (B) | Overall Length | Width (lbs) |
|---|---|---|---|---|---|
| PAHPG301 | HD9613574DS | 1/2" | 3-5/8” | 6-5/8” | 0.7 |
| PAHPG302 | HD9613575DS | 5/8” | 4” | 7” | 0.9 |
| PAHPG303 | HD9613579DS | 5/8” | 5-3/4” | 9” | 1.0 |
| PAHPG304 | HD9613576DS | 3/4" | 4” | 7” | 1.2 |
| PAHPG305 | HD9613580DS | 3/4" | 6-1/2” | 9-1/2” | 1.2 |
| PAHPG306 | HD9613577DS | 7/8” | 4-1/4” | 7-1/4” | 1.4 |
| PAHPG307 | HD9613581DS | 7/8” | 6-1/2” | 9-1/2” | 1.9 |
| PAHPG308 | HD9613578DS | 1” | 4-3/4” | 7-3/4” | 1.9 |
| PAHPG309 | HD9613582DS | 1” | 7-1/2” | 10” | 2.4 |
| PAHPG310 | HD9613583DS | 1-1/8” | 7” | 10” | 3.0 |
