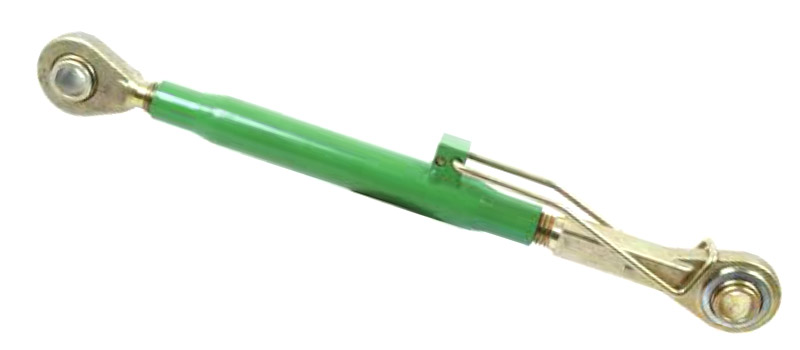

DESCRIPTION
Material EN-8, Forged eye bolt, Balls (Material C20, Hardened), Tube Powder Coated, Eye Bolts – Zinc / Golden Plated.
SPECIFICATION
| Agriparts Part No. | Reference No. | Ball ID (d1) | Ball Length | Thread | Pipe Length | Closed Length (Min) | Open Length (Max) | Weight (lbs) |
|---|---|---|---|---|---|---|---|---|
| PAJD -001 | S-4261 | 20, 25.50 | 44, 51 | 1 -1/8” NC | 320 | 550 | 760 | 12.00 |
