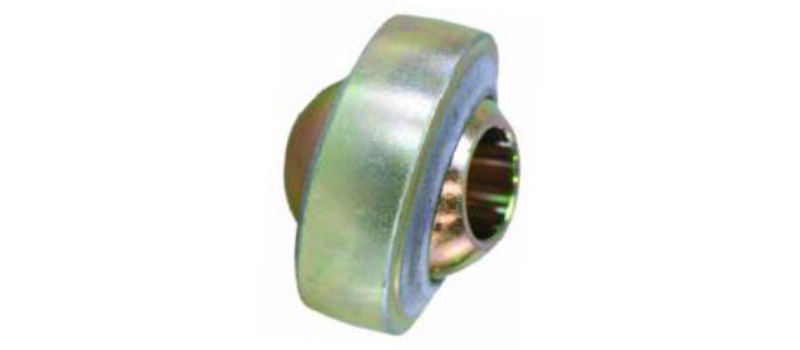

LIFT ARM BALL SOCKETS
DESCRIPTION
Weld on lift arm ball sockets to fits Category 0 to 3 tractors. Available in Black Oxide, Trivalent & Yellow Zinc plated.
SPECIFICATION
| Agriparts Part No. | Reference No. | Cat | Pin Dia (A) | Ball Length (B) | Socket Width (C) | Socket O.D. (D) | Description | Weight (lbs) |
|---|---|---|---|---|---|---|---|---|
| PALBS001 | B2225 | 0 | 5/8” | 1” | 3/4” | 2” | Standard duty, Black Oxide | 0.6 |
| PALBS002 | B221 | 1 | 7/8” | 1 -3/8” | 7/8” | 2-3/8” | Standard duty, Black Oxide | 0.9 |
| PALBS003 | B2215 | 2 | 1 -1/8” | 1 -3/4” | 1 -3/8” | 3-1/8” | Heavy duty, Black Oxide | 1.9 |
| PALBS004 | B2231 | 3 | 1 -7/16” | 1 -3/4” | 1-11/32” | 3-1/2” | Standard duty, black oxide | 2.4 |
| PALBS005 | B222 | 2 | 1 -1/8” | 1 -5/16” | 15/16” | 2-3/8” | Standard duty, plated | 0.8 |
| PALBS006 | B223 | 1 | 7/8” | 1 -3/8” | 7/8” | 2-3/8” | Standard duty, plated | 0.9 |
| PALBS007 | B224 | 2 | 1 -1/8” | 1 -5/16” | 15/16” | 2-3/8” | Standard duty, plated | 0.8 |
| PALBS008 | B231 | 1 & 2 | 7/8”& 1 -1/8” | 1 -3/4” | 1 -3/16” | 2-3/4” | Heavy duty, Black Oxide | 1.4 |
| PALBS009 | B232 | 1 & 2 | 7/8”& 1 -1/8” | 1 -3/4” | 1 -3/16” | 2-3/4” | Heavy duty, plated | 1.4 |
| PALBS010 | B233 | 1 & 2 | 7/8”& 1 -1/8” | 1 -3/4” | 1 -3/8” | 3-1/8” | Heavy duty, Black Oxide | 1.7 |
| PALBS011 | B2211 | 2 | 1 -1/8” | 1 -3/4” | 1 -1/4” | 2-3/4” | Heavy duty, Plated | 1.6 |
| PALBS012 | B2216 | 2 | 1 -1/8” | 1 -3/4” | 1 -3/8” | 3-1/8” | Heavy duty, Plated | 1.9 |
| PALBS013 | B2232 | 3 | 1 -1/8” | 1 -3/4” | 1 -11/32” | 3-1/2” | Standard duty, Plated | 2.4 |
