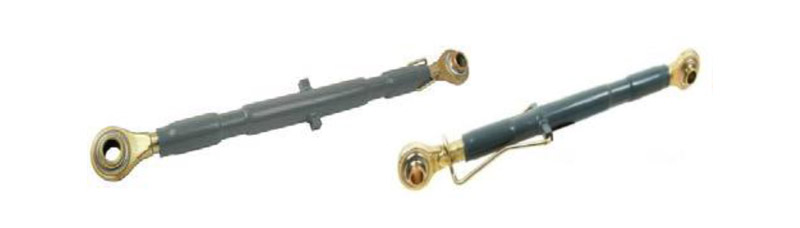

MASSY FERGUSON TOP LINKS
DESCRIPTION
Material EN-8, Forged Eye bolt, Balls (Material C20, Hardened), Tube Powder Coated, Eye Bolts–Zinc Plated.
SPECIFICATION
| Agriparts Part No. | Reference No. | Cat | Ball ID | Ball Length | Thread | Pipe Length | Closed Length (Min) | Open Length (Max) | Weight (lbs) |
|---|---|---|---|---|---|---|---|---|---|
| PAMF-001 | S-584 | 1 | 19.05 | 44 | 1 -1/16”NF | 438 | 590 | 750 | 10.10 |
| PAMF-002 | S-585 | 1 | 19.05 | 44 | 1 -1/16”NF | 476 | 610 | 770 | 11.70 |
| PAMF-003 | S-586 | 1 | 19.05 | 44 | 1 -1/16”NF | 546 | 670 | 830 | 11.50 |
| PAMF-004 | S-587 | 2 | 25.40 | 51 | 1 -1/16”NF | 546 | 670 | 830 | 11.90 |
| PAMF-005 | S-588 | 1, 2 | 19.05, 25.40 | 44, 51 | 1 -1/16”NF | 546 | 670 | 830 | 12.00 |
| PAMF-006 | S-589 | 1, 2 | 19.05, 25.40 | 44, 51 | 1 -1/16”NF | 476 | 610 | 770 | 12.15 |
| PAMF-007 | S-16066 | 1, 2 | 25.40 | 51 | 1 -1/16”NF | 476 | 610 | 770 | 12.70 |
| PAMF-008 | S-16521 | 1, 2 | 19.05, 25.40 | 44, 51 | 1 -1/16”NF | 438 | 610 | 750 | 11.70 |
| PAMF-009 | S-16522 | 2 | 25.40 | 51 | 1 -1/16”NF | 438 | 610 | 750 | 9.00 |
