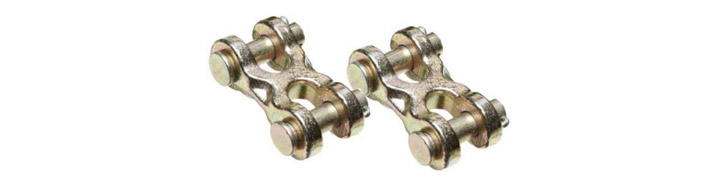

MID LINKS
DESCRIPTION
Forged carbon steel body.
Alloy steel pins.
Yellow zinc dichromate plated finish.
SPECIFICATION
| Agriparts Part No. | Reference No. | Chain | Pin Dia | A | B | C | D |
|---|---|---|---|---|---|---|---|
| PAML101 | S490501 | 1/4" - 5/16” | 3/8” | 7/16” | 2-1/2” | 1 -5/8” | 1-3/16” |
| PAML102 | S490502 | 3/8” | 7/16” | 1/2” | 2-13/16” | 1 -13/16” | 1-3/8” |
| PAML103 | S490503 | 7/16” – 1/2" | 9/16” | 5/8” | 3-5/8” | 2-3/16” | 1-3/4” |
