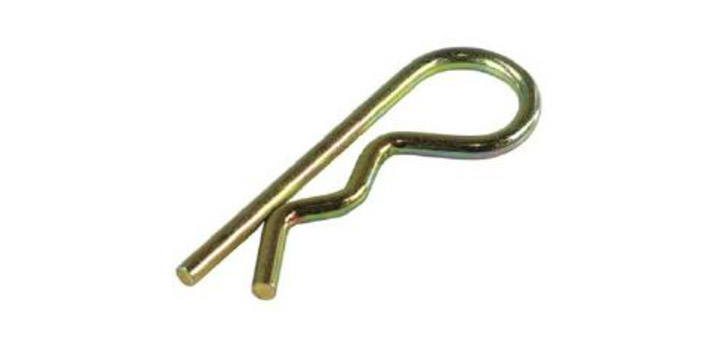

R CLIP PINS
DESCRIPTION
Available in the most popular sizes for farm and other applications.
Yellow zinc dichromate plated spring wire.
SPECIFICATION
| Agriparts Part No. | Reference No. | Wire Dia (A) | Total Lengths | Fits Pin Dia | Width (lbs) |
|---|---|---|---|---|---|
| PARCP001 | P7922 | 1/16” | 1-9/16” | 3/8” to 1/2" | 0.01 |
| PARCP002 | P7923 | 3/32” | 1-5/8” | 1/4" to 1/2" | 0.01 |
| PARCP003 | P7924 | 1/8” | 1-15/16” | 1/2" to 3/4" | 0.02 |
| PARCP004 | P7925 | 5/32” | 2-15/16” | 5/8” to 1” | 0.04 |
| PARCP005 | P7927 | 3/16” | 3-3/4” | 7/8” to 1-1/4” | 0.08 |
| PARCP006 | P7928 | 1/4" | 4” | 3/4" to 1” | 0.10 |
| PARCP007 | P7929 | 5/16” | 5-15/16” | 1” to 1-7/16” | 0.30 |
| PARCP008 | P7956 | 5/16” | 4-1/8” | 1” to 1-7/16” | 0.20 |
