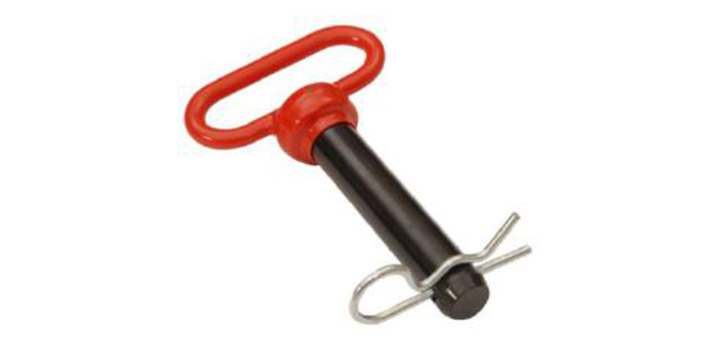

RED HANDLE HITCH PIN WITH R CLIP
DESCRIPTION
Designed for today’s demanding applications, these one-piece, Grade 5 performance, forged hitch pins are made from high-strength steel and heat treated.
Pin has black powder coating with a red vinyl coated head and handle. Zinc plated "R" clip pin included.
SPECIFICATION
| Agriparts Part No. | Reference No. | Pin Dia (A) | Usable Length (B) | Overall Length | Width (lbs) |
|---|---|---|---|---|---|
| PAHPR101 | P700511 | 1/2" | 3-5/8” | 6-5/8” | 0.7 |
| PAHPR102 | P700521 | 5/8” | 4” | 7” | 0.9 |
| PAHPR103 | P700522 | 5/8” | 5-3/4” | 9” | 1.1 |
| PAHPR104 | P700531 | 3/4" | 4” | 7” | 1.1 |
| PAHPR105 | P700532 | 3/4" | 6-1/2” | 9-1/2” | 1.5 |
| PAHPR106 | P700541 | 7/8” | 4-1/4” | 7-1/4” | 1.4 |
| PAHPR107 | P700542 | 7/8” | 6-1/2” | 9-1/2” | 1.9 |
| PAHPR108 | P700551 | 1” | 4-3/4” | 7-3/4” | 1.9 |
| PAHPR109 | P700552 | 1” | 7-1/2” | 10” | 2.6 |
| PAHPR110 | P700562 | 1-1/8” | 8-1/2” | 11-1/2” | 3.3 |
| PAHPR111 | P700572 | 1-1/4” | 8-1/2” | 11-1/2” | 4.1 |
| PAHPR112 | P700582 | 1-1/2” | 8-1/2” | 11-1/2” | 5.0 |
| PAHPR113 | P700583 | 1-1/2” | 13” | 13 -5/8” | 7.7 |
