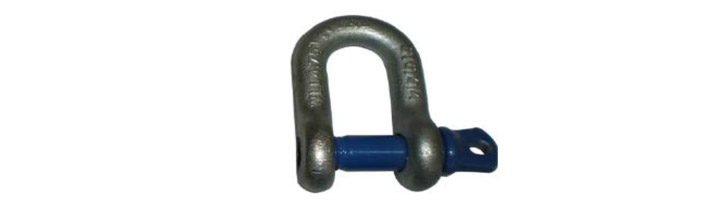

SCREW PIN CHAIN SHACKLES
DESCRIPTION
High tensile forged steel.
Oversized Pin.
Hot dipped galvanised finish.
SPECIFICATION
| Agriparts Part No. | Reference No. | Body Dia | Pin Dia | Clearance | Opening | W.L.L. (Tons) |
|---|---|---|---|---|---|---|
| PACSHD001 | 66020 | 1/4" | 5/16” | 7/8” | 7/16” | 1/2 |
| PACSHD002 | 66021 | 5/16” | 3/8” | 1” | 9/16” | 3/4 |
| PACSHD003 | 66022 | 3/8” | 7/16” | 1-1/4” | 5/8” | 1 |
| PACSHD004 | 66023 | 7/16” | 1/2" | 1-7/16” | 11/16” | 1-1/2 |
| PACSHD005 | 66024 | 1/2" | 5/8” | 1-5/8” | 3/4" | 2 |
