SHACKLES
DESCRIPTION

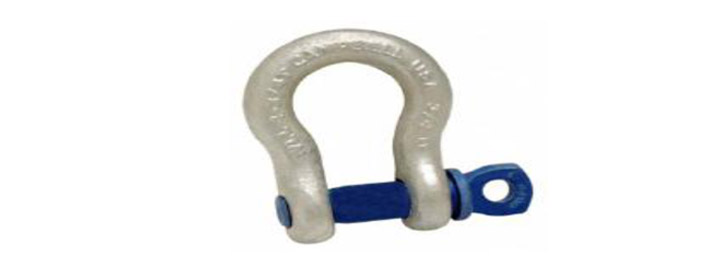

Screw Pin Anchor Shackles Heat treated alloy forged steel. Oversized alloy pin.
Hot dipped galvanised finish.
SPECIFICATION
| Agriparts Part No. | Reference No. | Body Dia | Pin Dia | Clearance | Opening (Min) | Opening | W.L.L. (Tons) |
|---|---|---|---|---|---|---|---|
| PAASHD001 | 66000 | 1/4" | 5/16” | 1-1/8” | 3/4" | 1/2" | 1/2 |
| PAASHD002 | 66001 | 5/16” | 3/8” | 1-1/4” | 7/8” | 1/2" | 3/4 |
| PAASHD003 | 66002 | 3/8” | 7/16” | 1-7/16” | 1” | 5/8” | 1 |
| PAASHD004 | 66003 | 7/16” | 1/2" | 1-11/16” | 1-1/8” | 3/4" | 1-1/2 |
| PAASHD005 | 66004 | 1/2" | 5/8” | 1-7/8” | 1-5/16” | 3/4" | 2 |
| PAASHD006 | 66005 | 5/8” | 3/4” | 2-3/8” | 1-5/8” | 1-1/16” | 3-1/4 |
| PAASHD007 | 66006 | 3/4" | 7/8” | 2-3/4” | 2” | 1-1/4” | 4-3/4 |
| PAASHD008 | 66007 | 7/8” | 1” | 3-5/16” | 2-1/4” | 1-7/16” | 6-1/2 |
| PAASHD009 | 66008 | 1” | 1-1/8” | 3-3/4” | 2-11/16” | 1-11/16” | 8-1/2 |
| PAASHD010 | 66059 | 1-1/8” | 1-1/4” | 4-1/4” | 2-5/8” | 1-3/4” | 9-1/2 |
| PAASHD011 | 66060 | 1-1/4” | 1-3/8” | 4-11/16” | 3” | 2” | 12 |
