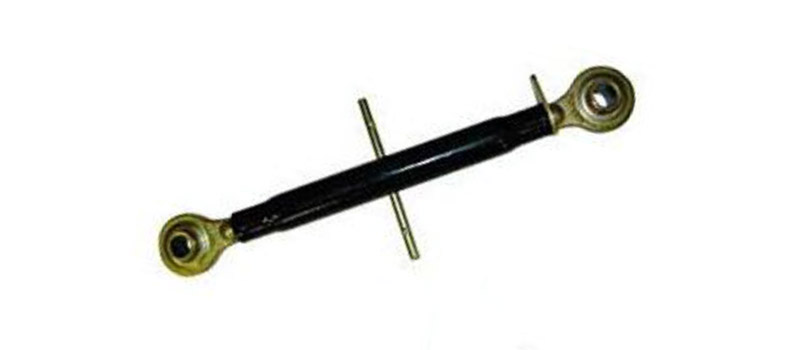

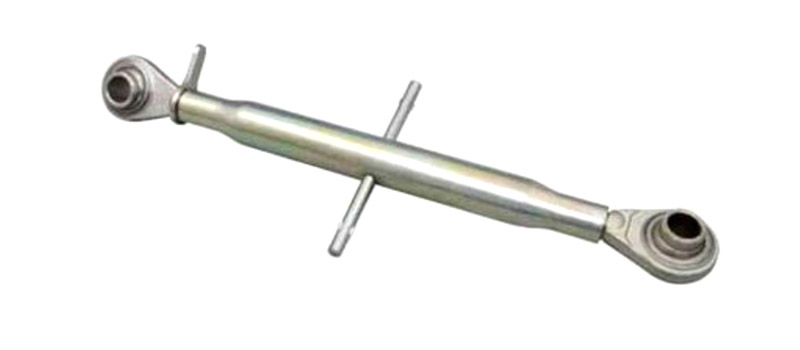

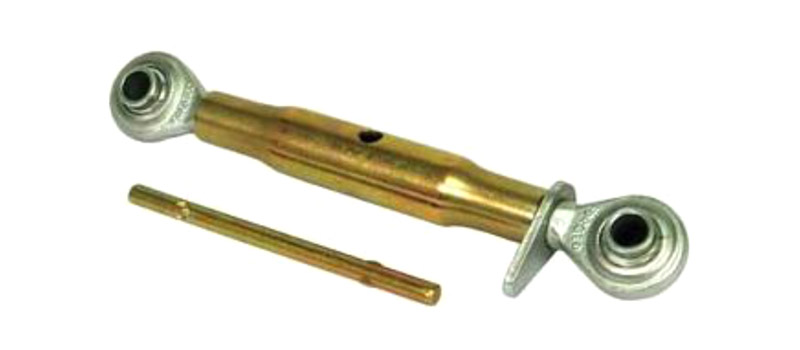

TOP LINK ASSEMBLIES
DESCRIPTION
Quality forged top links available in Category 0, 1, 1 & 2 combinations, 2 and 3. All top links are yellow zinc plated unless otherwise specified. The ends are clear zinc plated.
SPECIFICATION
| Agriparts Part No. | Reference No. | Cat. | Ball ID (d1) | Thread (D) | Pipe Length | Closed Length (Min) |
Open Length (Max) |
Finish | Weight (lbs) |
|---|---|---|---|---|---|---|---|---|---|
| PATL -001 | TL197 | 0 | 5/8” | 3/4" NC | 9-1/2” | 13” | 18” | Plated | 2.7 |
| PATL -002 | TL19 9 | 0 | 5/8” | 3/4" NC | 7-5/8” | 11” | 16” | Plated | 2.5 |
| PATL -003 | TL1 630 | 1 | 3/4" | 1 -1/8 " NC | 13 -1/4” | 17” | 26” | Plated | 7.4 |
| PATL -004 | 251163DS | 1 | 3/4" | 1 -1/8 " NC | 16” | 21” | 31” | Blue | 7.6 |
| PATL -005 | TL165 | 1 | 3/4" | 1 -1/8 " NC | 16” | 21” | 31” | Plated | 7.6 |
| PATL -006 | TL166 | 1 | 3/4" | 1 -1/8 " NC | 20” | 25” | 35” | Plated | 9.1 |
| PATL -007 | TL167 | 1 | 3/4" | 1 -1/8 " NC | 24” | 29” | 39” | Plated | 8.9 |
| PATL -008 | 9624607DS | 1 & 2 | 3/4" & 1” | 1 -1/8 " NC | 16” | 21” | 32” | Blue | 9.1 |
| PATL -009 | TL1670 | 1 & 2 | 3/4" & 1” | 1 -1/8 " NC | 16” | 21” | 32” | Plated | 9.1 |
| PATL -010 | B505450 | 1 & 2 | 3/4" & 1” | 1 -1/8 " NC | 20” | 25” | 35” | Plated | 10.1 |
| PATL -011 | TL174 | 2 | 1” | 1 -1/8 " NC | 16” | 21” | 31” | Plated | 10 |
| PATL -012 | TL176 | 2 | 1” | 1 -1/8 " NC | 20” | 25” | 37” | Plated | 10 |
| PATL -013 | TL1730 | 2 | 1” | 1 -1/4 " NC | 15 -3/4” | 20” | 30” | Plated | 10.7 |
| PATL -014 | TL175 | 2 | 1” | 1 -1/4 " NC | 16” | 23” | 32” | Red | 13.4 |
| PATL -015 | TL1735 | 2 | 1” | 1 -1/4 " NC | 20” | 27” | 37” | Plated | 12.6 |
| PATL -016 | Tl187 | 3 | 1 -1/4” | 1 -3/8” NC | 19 -1/2” | 25-1/2” | 37” | Black | 20 |
