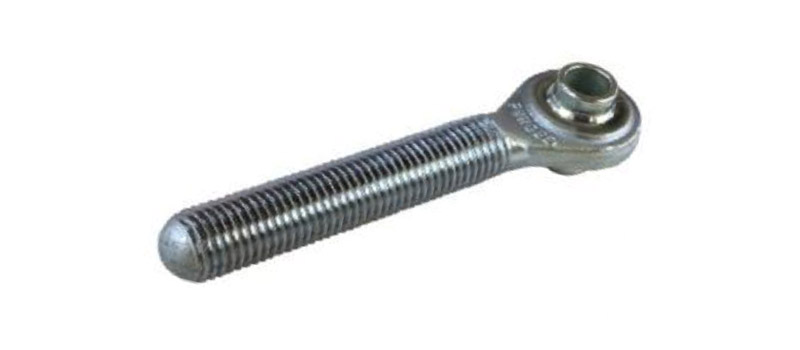

TOP LINK ENDS
DESCRIPTION
Forged screw in repair ends for Category 0, 1, 2 & 3 Top links.
Clear Zinc Plated
SPECIFICATION
| Agriparts Part No. | Reference No. | Cat. | Ball ID (A) | Thread (D) | Thread Length | Open Length | Finish | Weight (lbs) |
|---|---|---|---|---|---|---|---|---|
| PATLE -001 | RE1934 | 0 | 5/8” | 3/4" NC (RH) | 3-1/2” | 6” | Plated | 0.8 |
| PATLE -002 | RE1933 | 0 | 5/8” | 3/4" NC (LH) | 3-1/2” | 6” | Plated | 0.8 |
| PATLE -003 | RE1619 | 1 | 3/4" | 1 -1/8" NC (LH) | 6” | 8-3/4” | Plated | 2.4 |
| PATLE -004 | RE1620 | 1 | 3/4" | 1 -1/8" NC (RH) | 6” | 8-3/4” | Plated | 2.4 |
| PATLE -005 | RE1717 | 2 | 1” | 1 -1/4” NC (LH) | 5-1/2” | 10” | Plated | 3.0 |
| PATLE -006 | RE1718 | 2 | 1” | 1 -1/4” NC (RH) | 5-1/2” | 10” | Plated | 3.0 |
| PATLE -007 | RE1640 | 2 | 1” | 1 -1/8" NC (RH) | 6-1/2” | 11” | Plated | 3.0 |
| PATLE -008 | RE1641 | 2 | 1” | 1 -1/8" NC (LH) | 6-1/2” | 11” | Plated | 3.0 |
| PATLE -009 | RE1826 | 3 | 1 -1/4” | 1 -3/8” NC (RH) | 7-1/4” | 12 -1/8” | Plated | 8.0 |
| PATLE -010 | RE1827 | 3 | 1 -1/4” | 1 -3/8” NC (LH) | 7-1/4” | 12 -1/8” | Plated | 8.0 |
| PATLE -011 | RE113 | 0 | 3/4" | 1” NC (LH) | 5-1/2” | 8” | Plated | 1.8 |
| PATLE -012 | RE114 | 0 | 3/4" | 1” NC (RH) | 5-1/2” | 8” | Plated | 1.8 |
