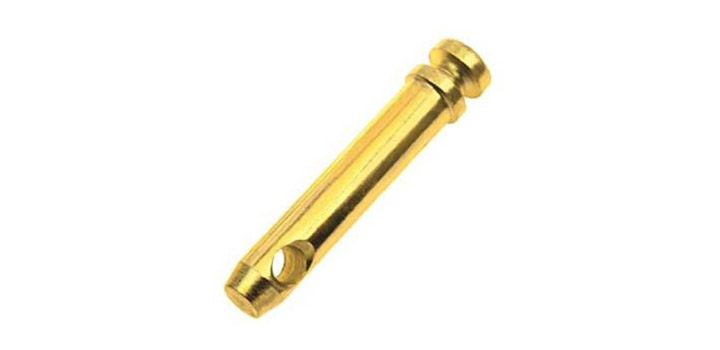

TOP LINK PINS
DESCRIPTION
Sizes and styles for Category 0 through 3 tractors.
Yellow zinc dichromate plated.
SPECIFICATION
| Agriparts Part No. | Reference No. | Cat | Pin Dia (A) | Usable Length (B) | Total Length | Weight (lbs) |
|---|---|---|---|---|---|---|
| PATLP301 | P776 | 0 | 5/8” | 3” | 4-7/16” | 0.4 |
| PATLP302 | P771 | 1 | 3/4" | 2-3/4” | 4-1/2” | 0.5 |
| PATLP303 | - | 1 | 3/4" | 3” | 5-1/4” | 0.5 |
| PATLP304 | P772 | 1 | 3/4" | 3-7/8” | 5-1/2” | 0.6 |
| PATLP305 | P773 | 1 | 3/4" | 4-5/8” | 6-3/8” | 0.8 |
| PATLP306 | P7715 | 1 | 3/4" | 4-3/4” | 6-3/8” | 0.8 |
| PATLP307 | P7716 | 2 | 1” | 3-9/16” | 5-1/4” | 1.2 |
| PATLP308 | P7719 | 2 | 1” | 3” | 4-3/4” | 1.1 |
| PATLP309 | P774 | 2 | 1” | 4-3/8” | 6” | 1.3 |
| PATLP310 | P7720 | 2 | 1” | 5-3/8” | 7-1/16” | 1.5 |
| PATLP311 | P7711 | 3 | 1-1/4” | 4-5/8” | 6-1/2” | 2.1 |
