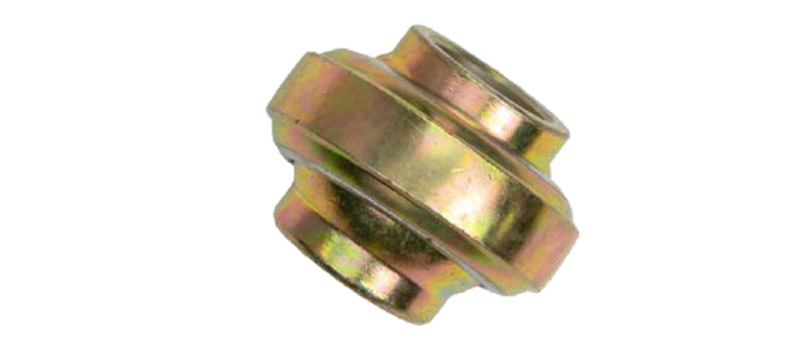

TOP LINK BALL SOCKETS
DESCRIPTION
Weld on top link ball sockets to fits Category 0 to 3 tractors. Available in Black Oxide, Trivalent & Yellow Zinc plated.
SPECIFICATION
| Agriparts Part No. | Reference No. | Cat | Pin Dia (A) | Ball Length (B) | Socket Width (C) | Socket O.D. (D) | Description | Weight (lbs) |
|---|---|---|---|---|---|---|---|---|
| PATBS001 | B213 | 1 | 3/4" | 1 -5/8” | 3/4” | 2” | Standard duty, Black Oxide | 0.6 |
| PATBS002 | B211 | 2 | 1” | 1 -3/4” | 7/8” | 2-3/8” | Standard duty, Black Oxide | 0.8 |
| PATBS003 | B219 | 2 | 1” | 1 -3/4” | 1 -3/16” | 2-3/4” | Heavy duty, Black Oxide | 1.8 |
| PATBS004 | B229 | 3 | 1 -1/4” | 1 -3/4” | 1 -9/32” | 3-1/8” | Standard duty, black oxide | 1.8 |
| PATBS005 | B212 | 1 | 3/4" | 1 -5/8” | 7/8” | 2-1/8” | Heavy duty, Black Oxide | 0.7 |
| PATBS006 | B214 | 2 | 1” | 1 -3/4” | 7/8” | 2-3/8” | Standard duty, plated | 0.8 |
| PATBS007 | B215 | 1 | 3/4" | 1 -5/8” | 7/8” | 2-1/8” | Heavy duty, plated | 0.7 |
| PATBS008 | B216 | 1 | 3/4" | 1 -5/8” | 3/4" | 2” | Standard duty, plated | 0.6 |
| PATBS009 | B225 | 1 | 3/4" | 1 -3/8” | 7/8” | 2-3/8” | Heavy duty, Black Oxide | 0.9 |
| PATBS010 | B227 | 2 | 1” | 1 -1/4” | 7/8” | 2-3/8” | Standard duty, Black Oxide | 0.8 |
| PATBS011 | B228 | 2 | 1” | 1 -1/4” | 7/8” | 2-3/8” | Standard duty, Plated | 0.8 |
| PATBS012 | B235 | 1 & 2 | 3/4" & 1” | 1-1/2” & 1 -1/4” | 7/8” | 2-3/8” | Standard duty, Black Oxide | 0.6 |
