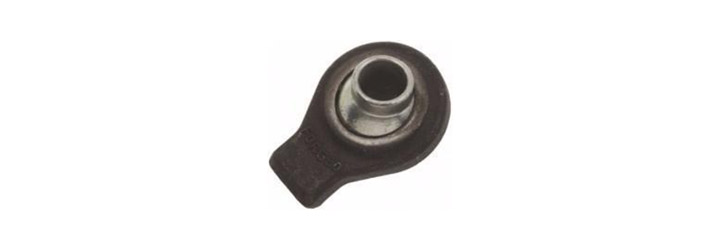

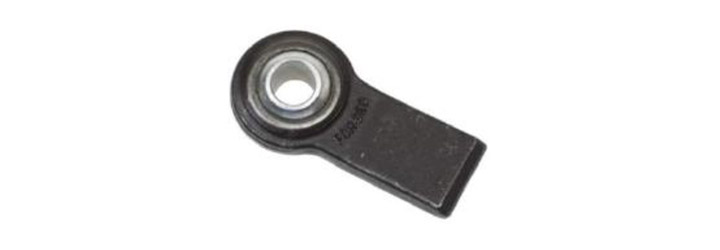

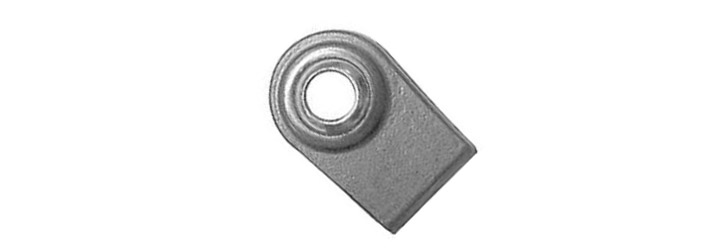

WELD ON ENDS
SPECIFICATION
| Agriparts Part No. | Reference No. | Cat. | Description | Dim A | Dim B | Dim C | Dim D | Dim E | Dim F | Weight (lbs) |
|---|---|---|---|---|---|---|---|---|---|---|
| PAWO001 | RE1642 | 1 | Top Link End | 2” | 3/4” | 1-1/8” | 2-1/4” | 1/2” | 1-3/4” | 0.9 |
| PAWO002 | RE1643 | 2 | Top Link End | 2-3/8” | 1” | 1-1/8” | 2-5/8” | 1/2” | 2” | 1.4 |
| PAWO003 | LA3322 | 1 | Lift Arm End-Straight | 2-3/4” | 7/8” | 2-3/8” | 2-5/8” | 5/8” | 1-3/8” | 1.7 |
| PAWO004 | LA3325 | 2 | Lift Arm End-Straight | 3-1/8” | 1-1/8” | 2-3/4” | 3-1/8” | 3/4" | 1-3/4” | 2.8 |
| PAWO005 | LA3323 | 1 | Lift Arm End Bent | 4” | 7/8” | 1-7/8” | 2-5/8” | 5/8” | 1-3/8” | 2.0 |
| PAWO006 | LA3324 | 2 | Lift Arm End-Bent | 4” | 1-1/8” | 1-7/8” | 3-1/8” | 5/8” | 1-3/4” | 2.7 |
| PAWO007 | LA3330 | 3 | Lift Arm End-Straight | 3-3/8” | 1-7/16” | 3” | 3-1/2” | 3/4" | 1-3/4” | 3.0 |
| PAWO008 | LA3320 | 1 | Lift Arm Repair End RH | 4-3/8” | 7/8” | 1-13/16” | 2-5/8” | 5/8” | 1-3/8” | 2.0 |
| PAWO009 | LA3321 | 1 | Lift Arm Repair End-LH | 4-3/8” | 7/8” | 1-13/16” | 2-5/8” | 5/8” | 1-3/8” | 2.0 |
